Description

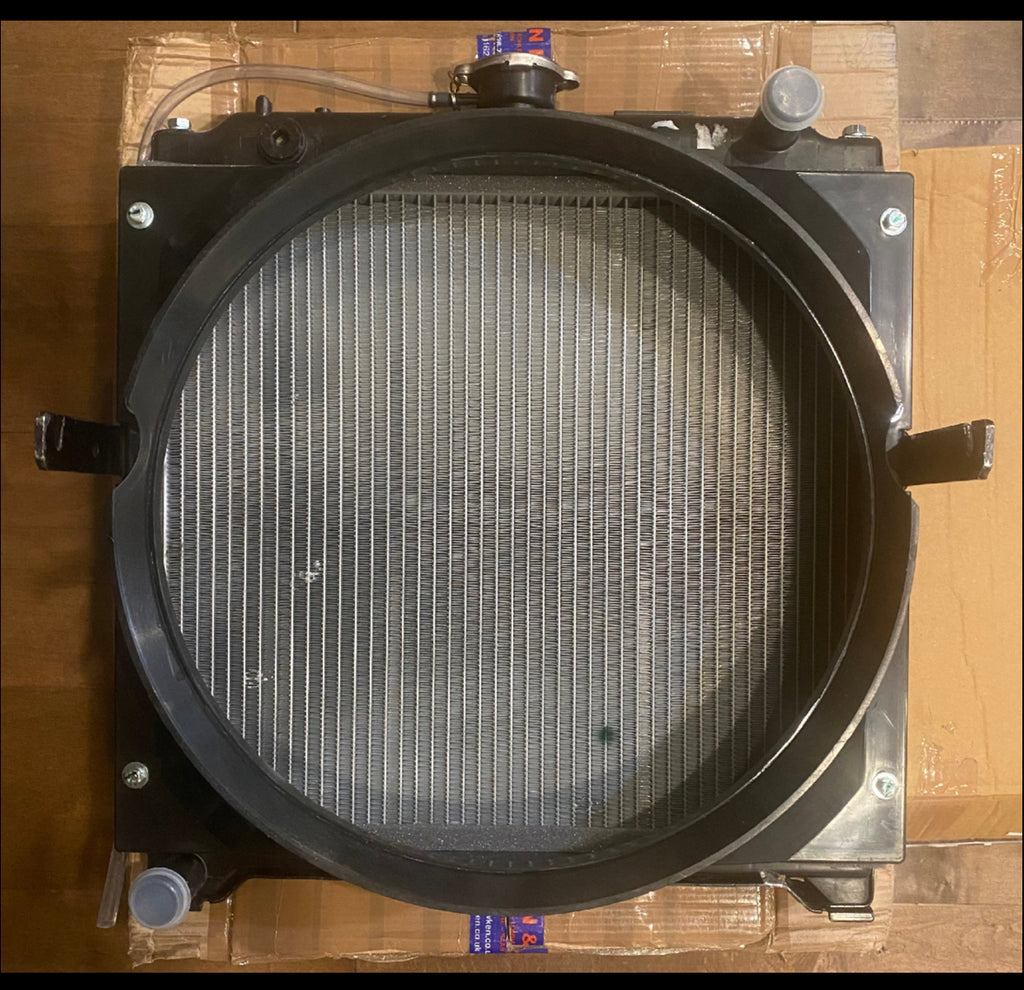

757-31010 Radiator, commonly used on the LWP2,3,4 Alpha series engines. It is a 1 row type. The fan shroud opening is 15.27 inches in diameter, if your fan is bigger then 15 inches, probably not the radiator you need.
From the top of the tank to the bottom of the radiator where it bolts down is approximately 18.66".
Contact us for factory help if none of these measurements make any sense with what you have.
This radiator is a new design and will be similar in size but with updated construction, using high temp plastic and aluminum core construction. On occasions the 2 side mounting ears that bolt to the rubber flexible hardware will have to be modified depending on your application. Be prepared to make minor modifications to fit your application. Lister Petter has tried to engineer responsible replacement parts but on a very few occasions "in field" adjustments are expected and necessary.

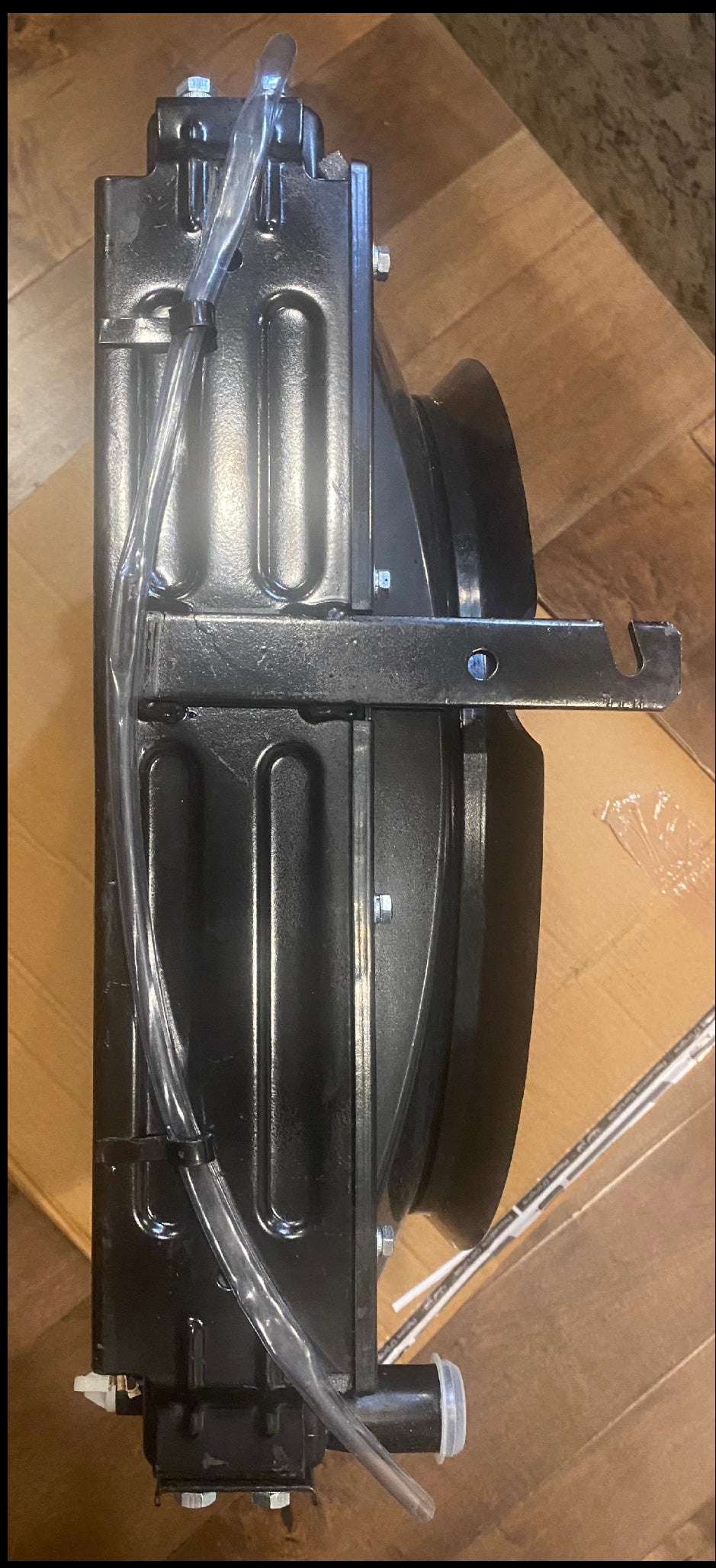

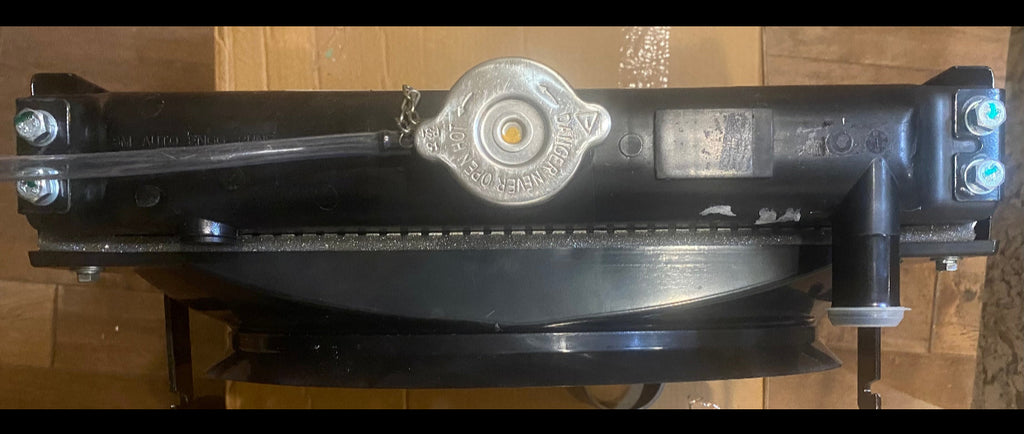

Unlike other radiators online this is radiator comes with a shroud, cap and an overflow tube. The mounting ears on the sides are welded to the frame.
Please see the technical drawing provided.
This will be item number 1 in the Lister Petter drawing.
